Spatial sequences: CNN2D + LSTM and ConvLSTM — Three-seed reference comparison

From daily regional summaries to six cell probabilities

Download prepared notebook Open Colab to upload the notebook Notebook with prepared outputs Blank Colab for self-study All tutorials

NoteThree-seed reference comparison

This page retains the original repeated experiment (seeds 7, 17 and 27), its code and prepared outputs. Its averages and spreads belong to that experiment. For the 30-minute practical and direct single-seed code, use the linear teaching walkthrough. Do not substitute these outputs for an execution of the linear notebook.

Build two small spatial-temporal networks on the same frozen catalogue. Copy each code block into a new Colab cell in order. The common preparation below downloads and verifies the course data, constructs the six-cell representation, and preserves the chronological split. This is an exploratory teaching extension; validation diagnostics are not verified seismic forecasting results.

Open the prepared notebook in Colab

For the live practical, download the notebook with cells already prepared. Open Google Colab, choose File > Upload notebook, and select maps.ipynb. Select a Python CPU runtime and run the cells from the beginning in order. Keep this page alongside Colab for the explanations. The separate notebook with prepared outputs is a reference from the documented local run.

Execution order and teaching order serve different purposes. Run all code cells in sequence so every variable and model definition exists. The instructor will pause the explanation at selected checkpoints while execution continues. If setup or training takes longer than the live slot, read the prepared local outputs on this page; completing a fresh run can continue after class. Do not skip code cells just because their detailed explanation is deferred.

For self-study from a blank notebook: open a new Colab and copy each numbered Python block into its own code cell, in order. The Copy button copies code only. This produces the same experiment as the prepared notebook.

The first run downloads a frozen public data pack automatically. Its URL is pinned to a Git commit and its SHA-256 is checked. There is no manual ZIP upload and no live catalogue query. After an interrupted session, run the notebook again from the beginning. Outputs below labelled prepared local run come from an independent local CPU execution; they are not a claim about your Colab session.

Colab normally supplies the required libraries. If imports fail, install tensorflow==2.19.1 pandas scikit-learn matplotlib in a separate cell with %pip install, restart the runtime, and begin again. Exact local versions and timings are recorded with the prepared results. Installation changes the active Colab environment only.

Prepare the environment

We use small networks and three predeclared seeds. A seed controls the pseudo-random choices used for initialization and optimization; it does not represent uncertainty from new earthquakes. The tutorials evaluate validation only: the existing course test period has already been inspected. Changing architecture now does not make that period an untouched test again.

Code block 1 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

import os
os.environ["CUDA_VISIBLE_DEVICES"] = "-1"
os.environ["TF_CPP_MIN_LOG_LEVEL"] = "2"
os.environ["TF_NUM_INTRAOP_THREADS"] = "2"
os.environ["TF_NUM_INTEROP_THREADS"] = "2"

from pathlib import Path
import datetime, hashlib, json, platform, time, uuid, zipfile
from urllib.request import urlopen
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import sklearn
import tensorflow as tf
from tensorflow import keras
from IPython.display import display

try:
    tf.config.threading.set_intra_op_parallelism_threads(2)
    tf.config.threading.set_inter_op_parallelism_threads(2)
except RuntimeError:
    print("Thread settings were already initialized; restart for the reference settings.")

SEEDS = [7, 17, 27]
EPOCHS, BATCH_SIZE = 20, 64
TUTORIAL = "maps"
RUN_DIR = Path("tutorial-runs") / (TUTORIAL + "-" + uuid.uuid4().hex[:12])
RUN_DIR.mkdir(parents=True, exist_ok=False)
started_at = time.perf_counter()
print("Python:", platform.python_version(), "TensorFlow:", tf.__version__, "Keras:", keras.__version__)
print("Validation only. Results will be saved to", RUN_DIR)
Prepared local output — expand to compare
Python: 3.12.14 TensorFlow: 2.19.1 Keras: 3.15.1
Validation only. Results will be saved to tutorial-runs\maps-445f3b58f5db

Download and verify the frozen catalogue

The pack contains the regional USGS catalogue and its provenance. It includes records down to M 3 for diagnostics; these tutorials retain M ≥ 4.5 as inputs and M ≥ 5 as targets. Magnitudes are the preferred catalogue values, not a claim that all measurements use the same magnitude scale.

The catalogue was downloaded in October 2026 and contains revised records. Separating inputs and targets by event time cannot reconstruct which catalogue versions were available historically. These are retrospective teaching experiments, not operational forecasts or maps of shaking or risk.

Code block 2 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

PACK_URL = "https://raw.githubusercontent.com/FranPlaza/FranPlaza.github.io/0e7a7e4b1c38490018f11b26170fe6a87e4997f9/courses/statsei14/downloads/data-pack.zip"
PACK_SHA256 = "0ee5d4d71aafa19023fdb1ee6f289a11e7fd7f4ed88ad7a91032ca24505d10a2"
CATALOGUE_SHA256 = "16e9b731a5b407d75a2321d3d0d2c889542e8223a9ee4fe81efe624eb6b166d2"
archive_path = Path("statsei14-data-pack.zip")
if not archive_path.exists():
    with urlopen(PACK_URL, timeout=60) as response:
        payload = response.read()
    assert hashlib.sha256(payload).hexdigest() == PACK_SHA256, "Unexpected download: stop."
    archive_path.write_bytes(payload)
assert hashlib.sha256(archive_path.read_bytes()).hexdigest() == PACK_SHA256, "Changed cached pack: stop."
DATA_DIR = Path("statsei14-data").resolve()
DATA_DIR.mkdir(exist_ok=True)
with zipfile.ZipFile(archive_path) as archive:
    for member in archive.infolist():
        assert (DATA_DIR / member.filename).resolve().is_relative_to(DATA_DIR), "Unsafe ZIP member."
    archive.extractall(DATA_DIR)
catalogue_path = DATA_DIR / "data/frozen/usgs_chile_2000_2025.csv"
assert hashlib.sha256(catalogue_path.read_bytes()).hexdigest() == CATALOGUE_SHA256
events = pd.read_csv(catalogue_path)
events["time"] = pd.to_datetime(events["time"], utc=True)
events = events.sort_values("time").reset_index(drop=True)
print("Verified catalogue records:", len(events))
display(events[["time", "latitude", "longitude", "mag"]].head())
Prepared local output — expand to compare
Verified catalogue records:
 12859
time latitude longitude mag
0 2000-01-07 11:49:11.720000+00:00 -28.495 -69.196 4.0
1 2000-01-08 11:43:58.150000+00:00 -31.017 -71.339 4.4
2 2000-01-11 13:16:34.420000+00:00 -30.747 -71.319 4.5
3 2000-01-18 17:12:18.360000+00:00 -31.630 -71.451 4.9
4 2000-01-19 01:24:00.150000+00:00 -31.440 -71.384 3.8

Turn events into daily inputs

Each day has three channels: log(1 + count), maximum magnitude excess above 4.5 (the daily maximum minus 4.5, or zero on an empty day), and an event-presence indicator. The regional series pools all locations. For the spatial tutorials we also keep six fixed geographic cells: three latitude bands by two longitude bands. Cell IDs run west to east within each row, then south to north. They are illustrative geographic bins, not inferred tectonic provinces; degree-based cells do not have identical physical areas. We retain the same domain and magnitude thresholds for every model.

Only training data should be used to judge whether the grid has adequate support. A finer map would create more rare targets, not automatically more useful information. In Tutorial 1, X_regional is the input; the spatial arrays are prepared here so the three tutorials share one transparent data pipeline.

Code block 3 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

START = pd.Timestamp("2000-01-01", tz="UTC")
END = pd.Timestamp("2026-01-01", tz="UTC")  # exclusive
days = pd.date_range(START, END - pd.Timedelta(days=1), freq="D")
LAT_EDGES = np.array([-34.0, -32.0, -30.0, -28.0])
LON_EDGES = np.array([-74.0, -71.5, -69.0])
N_ROWS, N_COLS = 3, 2
FEATURES = ["log_count", "max_magnitude_excess", "has_event"]
inside = events.latitude.between(LAT_EDGES[0], LAT_EDGES[-1]) & events.longitude.between(LON_EDGES[0], LON_EDGES[-1])
selected = events.loc[inside & (events.time >= START) & (events.time < END) & (events.mag >= 4.5)].copy()
selected["day"] = (selected.time.dt.floor("D") - START).dt.days
selected["row"] = np.clip(np.searchsorted(LAT_EDGES, selected.latitude, side="right") - 1, 0, N_ROWS - 1)
selected["col"] = np.clip(np.searchsorted(LON_EDGES, selected.longitude, side="right") - 1, 0, N_COLS - 1)

counts = np.zeros((len(days), N_ROWS, N_COLS), dtype=np.float32)
max_excess = np.zeros_like(counts)
target_counts = np.zeros_like(counts)
indices = (selected.day.to_numpy(), selected.row.to_numpy(), selected.col.to_numpy())
np.add.at(counts, indices, 1)
np.maximum.at(max_excess, indices, selected.mag.to_numpy() - 4.5)
qualifying = selected.mag.to_numpy() >= 5.0
np.add.at(target_counts, tuple(axis[qualifying] for axis in indices), 1)
daily_grid_raw = np.stack([np.log1p(counts), max_excess, (counts > 0).astype(float)], axis=-1).astype("float32")
daily_regional_raw = np.stack([
    np.log1p(counts.sum(axis=(1, 2))),
    max_excess.max(axis=(1, 2)),
    (counts.sum(axis=(1, 2)) > 0).astype(float)
], axis=-1).astype("float32")
assert int(counts.sum()) == len(selected)
assert int(target_counts.sum()) == int(qualifying.sum())
print("Daily regional:", daily_regional_raw.shape, "; daily grid:", daily_grid_raw.shape)
Prepared local output — expand to compare
Daily regional: (9497, 3) ; daily grid: (9497, 3, 2, 3)

Build histories, labels and chronological partitions

At each Monday origin t, inputs use [t − 30 days, t) and targets use [t, t + 7 days). We remove any target interval that crosses a train/validation/test boundary or the end of the catalogue. Inputs to a later partition can contain earlier historical days; their outcomes never enter training. Weekly target windows do not overlap, although histories overlap and earthquake sequences remain dependent.

The regional target is one binary outcome. The spatial target has six binary outcomes: several cells may be positive in the same week, or all may be zero. Six cell probabilities therefore need not sum to one.

Code block 4 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

LOOKBACK, HORIZON = 30, 7
VAL_START = pd.Timestamp("2017-01-01", tz="UTC")
TEST_START = pd.Timestamp("2021-01-01", tz="UTC")
regional_windows, grid_windows, grid_labels, kept_origins, partitions = [], [], [], [], []
excluded = []
for origin in pd.date_range("2001-01-01", "2025-12-31", freq="W-MON", tz="UTC"):
    i = (origin - START).days
    stop = origin + pd.Timedelta(days=HORIZON)
    split = "train" if origin < VAL_START else ("validation" if origin < TEST_START else "test")
    boundary = VAL_START if split == "train" else (TEST_START if split == "validation" else END)
    if i < LOOKBACK or stop > boundary:
        excluded.append(str(origin.date()))
        continue
    regional_windows.append(daily_regional_raw[i - LOOKBACK:i])
    grid_windows.append(daily_grid_raw[i - LOOKBACK:i])
    grid_labels.append((target_counts[i:i + HORIZON].sum(axis=0) > 0).astype("int32"))
    kept_origins.append(origin)
    partitions.append(split)
origins = pd.DatetimeIndex(kept_origins)
partitions = np.asarray(partitions)
raw_regional = np.stack(regional_windows)
raw_grid = np.stack(grid_windows)
y_grid = np.stack(grid_labels)
y_regional = y_grid.any(axis=(1, 2)).astype("int32")
train_mask = partitions == "train"
val_mask = partitions == "validation"
test_mask = partitions == "test"
assert np.all(origins[train_mask] + pd.Timedelta(days=HORIZON) <= VAL_START)
assert np.all(origins[val_mask] + pd.Timedelta(days=HORIZON) <= TEST_START)
assert np.all(origins[test_mask] + pd.Timedelta(days=HORIZON) <= END)
assert not np.any(train_mask & val_mask)
print("Windows:", dict(zip(*np.unique(partitions, return_counts=True))))
print("Excluded boundary/incomplete targets:", excluded)
display(pd.DataFrame({
    "cell": np.arange(N_ROWS * N_COLS),
    "row_south_to_north": np.repeat(np.arange(N_ROWS), N_COLS),
    "col_west_to_east": np.tile(np.arange(N_COLS), N_ROWS),
    "training_positive_weeks": y_grid[train_mask].sum(axis=0).reshape(-1),
    "training_base_rate": y_grid[train_mask].mean(axis=0).reshape(-1)
}))
Prepared local output — expand to compare
Windows: {np.str_('test'): np.int64(260), np.str_('train'): np.int64(834), np.str_('validation'): np.int64(208)}
Excluded boundary/incomplete targets: ['2016-12-26', '2020-12-28', '2025-12-29']
cell row_south_to_north col_west_to_east training_positive_weeks training_base_rate
0 0 0 0 57 0.068345
1 1 0 1 26 0.031175
2 2 1 0 49 0.058753
3 3 1 1 37 0.044365
4 4 2 0 19 0.022782
5 5 2 1 41 0.049161

Standardize using training histories only

For regional inputs, we estimate one mean and standard deviation per channel. For spatial inputs, we also use one pair per channel, pooled across training cells, so the map and graph models receive exactly the same scaled arrays. Empty days remain distinguishable through the presence channel. Target labels are never standardized.

The metric function averages squared probability errors and binary log losses. On spatial outputs these are averages of marginal cell scores, not the likelihood of a joint spatial point process. We will also inspect each cell separately.

Code block 5 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

regional_mean = raw_regional[train_mask].mean(axis=(0, 1), dtype=np.float64)
regional_scale = raw_regional[train_mask].std(axis=(0, 1), dtype=np.float64)
regional_scale = np.where(regional_scale > 0, regional_scale, 1.0)
grid_mean = raw_grid[train_mask].mean(axis=(0, 1, 2, 3), dtype=np.float64)
grid_scale = raw_grid[train_mask].std(axis=(0, 1, 2, 3), dtype=np.float64)
grid_scale = np.where(grid_scale > 0, grid_scale, 1.0)
X_regional = ((raw_regional - regional_mean) / regional_scale).astype("float32")
X_grid = ((raw_grid - grid_mean) / grid_scale).astype("float32")
assert X_regional.shape[1:] == (30, 3) and X_grid.shape[1:] == (30, 3, 2, 3)
assert np.isfinite(X_regional).all() and np.isfinite(X_grid).all()

def score_probabilities(y_true, probability):
    y_true = np.asarray(y_true, dtype=float)
    probability = np.asarray(probability, dtype=float)
    assert y_true.shape == probability.shape
    assert np.isin(y_true, [0, 1]).all() and np.isfinite(probability).all()
    assert ((probability >= 0) & (probability <= 1)).all()
    clipped = np.clip(probability, 1e-7, 1 - 1e-7)
    return {"brier": float(np.mean((probability - y_true) ** 2)),
            "log_loss": float(-np.mean(y_true * np.log(clipped) + (1 - y_true) * np.log1p(-clipped)))}

protocol = {
    "tutorial": TUTORIAL, "seeds": SEEDS, "epochs_max": EPOCHS, "batch_size": BATCH_SIZE,
    "lookback_days": LOOKBACK, "horizon_days": HORIZON,
    "pack_url": PACK_URL, "pack_sha256": PACK_SHA256, "catalogue_sha256": CATALOGUE_SHA256,
    "features": FEATURES, "latitude_edges": LAT_EDGES.tolist(), "longitude_edges": LON_EDGES.tolist(),
    "train": "2001-2016", "validation": "2017-2020", "test": "2021-2025; not evaluated here",
    "historical_as_of_verified": False, "scope": "Exploratory retrospective; validation only",
    "regional_mean": regional_mean.tolist(), "regional_scale": regional_scale.tolist(),
    "grid_mean": grid_mean.tolist(), "grid_scale": grid_scale.tolist(),
    "python": platform.python_version(), "tensorflow": tf.__version__, "keras": keras.__version__,
    "numpy": np.__version__, "pandas": pd.__version__, "scikit_learn": sklearn.__version__
}
(RUN_DIR / "protocol.json").write_text(json.dumps(protocol, indent=2), encoding="utf-8")
pd.DataFrame({"origin": origins.astype(str), "split": partitions}).to_csv(RUN_DIR / "windows.csv", index=False)
print("Ready:", X_regional.shape, X_grid.shape, "; no test outcomes used for fitting or evaluation.")
Prepared local output — expand to compare
Ready: (1302, 30, 3) (1302, 30, 3, 2, 3) ; no test outcomes used for fitting or evaluation.

1. Keep the spatial support explicit

Our input is a sequence of 30 maps. Each map has 3 latitude rows, 2 longitude columns and the same 3 daily features defined above. A sample has shape (30, 3, 2, 3); its target is a (3, 2) binary map.

30 daily maps (3 rows x 2 columns x 3 features)
       | shared CNN2D on each day          | ConvLSTM2D
30 spatial feature vectors                | spatial recurrent state
       | LSTM                             |
       +----------- six sigmoid outputs --+

Each output estimates the probability of at least one catalogue event with M >= 5 inside that cell in the next seven days. Several cells, or no cells, may be positive. Sigmoid outputs are appropriate; a softmax would impose an incorrect sum-to-one constraint. Sigmoids do not establish statistical independence between cells.

The cells are illustrative geographic rectangles, not tectonic regions. Their areas differ, and boundaries truncate activity. Inspect training support before fitting. These predeclared cells remain fixed for the demonstration; do not redesign them after inspecting validation results.

Code block 6 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

# Common preparation has defined the standardized grid, targets and splits.
N_NODES = N_ROWS * N_COLS
assert X_grid.shape[1:] == (30, N_ROWS, N_COLS, len(FEATURES))
assert y_grid.shape == (len(X_grid), N_ROWS, N_COLS)
assert np.isfinite(X_grid).all() and np.isin(y_grid, [0, 1]).all()
assert not np.any(train_mask & val_mask)
assert not np.any(train_mask & test_mask)
assert not np.any(val_mask & test_mask)
assert train_mask.sum() > 0 and val_mask.sum() > 0
OUTPUT_DIR = RUN_DIR / 'maps'
OUTPUT_DIR.mkdir(parents=True, exist_ok=True)
Y = y_grid.reshape(len(y_grid), N_NODES).astype('float32')
y_train, y_val = Y[train_mask], Y[val_mask]
validation_origins = pd.DatetimeIndex(origins[val_mask])
lat_centres = (np.asarray(LAT_EDGES[:-1]) + np.asarray(LAT_EDGES[1:])) / 2
lon_centres = (np.asarray(LON_EDGES[:-1]) + np.asarray(LON_EDGES[1:])) / 2
node_table = pd.DataFrame([
    {'node': r * N_COLS + c, 'row': r, 'column': c,
     'latitude': lat_centres[r], 'longitude': lon_centres[c],
     'training_windows': len(y_train),
     'training_positive_windows': int(y_train[:, r * N_COLS + c].sum()),
     'training_prevalence': float(y_train[:, r * N_COLS + c].mean())}
    for r in range(N_ROWS) for c in range(N_COLS)
])
node_table.to_csv(OUTPUT_DIR / 'spatial_support.csv', index=False)
display(node_table)
print('Input:', X_grid.shape, '| target:', y_grid.shape)
print('Counts describe positive forecast windows, not independent earthquakes.')
if (node_table.training_positive_windows < 20).any():
    print('Sparse cells: fitting and calibration can be unstable.')
Prepared local output — expand to compare
node row column latitude longitude training_windows training_positive_windows training_prevalence
0 0 0 0 -33.0 -72.75 834 57 0.068345
1 1 0 1 -33.0 -70.25 834 26 0.031175
2 2 1 0 -31.0 -72.75 834 49 0.058753
3 3 1 1 -31.0 -70.25 834 37 0.044365
4 4 2 0 -29.0 -72.75 834 19 0.022782
5 5 2 1 -29.0 -70.25 834 41 0.049161
Input: (1302, 30, 3, 2, 3) | target: (1302, 3, 2)
Counts describe positive forecast windows, not independent earthquakes.
Sparse cells: fitting and calibration can be unstable.

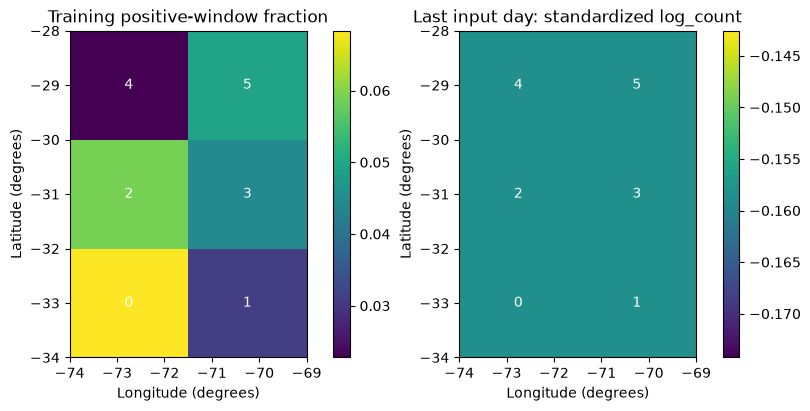

2. Read a map before fitting

Row zero is the southern latitude band. The first panel displays the training frequency of positive windows; the second displays one standardized input feature on one historical day, rather than an event count. Shared channel scaling retains relative differences between cells.

Check: Which direction corresponds to increasing latitude? Why do the panels have different colour scales?

Code block 7 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

first_train = np.flatnonzero(train_mask)[0]
fig, axes = plt.subplots(1, 2, figsize=(8, 4), constrained_layout=True)
fields = [y_train.mean(axis=0).reshape(N_ROWS, N_COLS), X_grid[first_train, -1, :, :, 0]]
titles = ['Training positive-window fraction', f'Last input day: standardized {FEATURES[0]}']
for ax, field, title in zip(axes, fields, titles):
    mesh = ax.pcolormesh(LON_EDGES, LAT_EDGES, field, shading='flat', cmap='viridis')
    for node in range(N_NODES):
        r, c = divmod(node, N_COLS)
        ax.text(lon_centres[c], lat_centres[r], str(node), color='white', ha='center', va='center')
    ax.set(title=title, xlabel='Longitude (degrees)', ylabel='Latitude (degrees)')
    fig.colorbar(mesh, ax=ax)
plt.show()
Prepared local output — expand to compare Prepared local figure from code block 7

3. Establish a spatial baseline

Repeat each cell’s training prevalence for every validation origin. This accounts for persistent differences between cells and uses no validation labels for fitting. A training cell without positives has empirical prevalence zero; the shared scorer clips probabilities only for log loss. Retain all six cells in the evaluation.

The helper only records results. Model construction, fitting and prediction remain visible below.

Code block 8 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

metric_rows, zone_metric_rows, prediction_tables = [], [], []
validation_predictions = {}

def record_validation(name, seed, probabilities, parameters, fit_seconds,
                      predict_seconds, epochs_run, best_epoch):
    probabilities = np.asarray(probabilities).reshape(len(y_val), N_NODES)
    assert np.isfinite(probabilities).all()
    assert ((0 <= probabilities) & (probabilities <= 1)).all()
    scores = score_probabilities(y_val.ravel(), probabilities.ravel())
    metric_rows.append(dict(model=name, seed=seed, split='validation',
                            parameters=parameters, fit_seconds=fit_seconds,
                            predict_seconds=predict_seconds, epochs_run=epochs_run,
                            best_epoch=best_epoch, **scores))
    for node in range(N_NODES):
        zone_metric_rows.append(dict(
            model=name, seed=seed, split='validation', node=node,
            n_windows=len(y_val), positives=int(y_val[:, node].sum()),
            **score_probabilities(y_val[:, node], probabilities[:, node])))
    prediction_tables.append(pd.DataFrame({
        'origin': np.repeat(validation_origins.astype(str).to_numpy(), N_NODES),
        'node': np.tile(np.arange(N_NODES), len(y_val)),
        'observed': y_val.astype(int).ravel(), 'probability': probabilities.ravel(),
        'model': name, 'seed': seed, 'split': 'validation',
    }))
    validation_predictions[(name, seed)] = probabilities.copy()

prevalence = y_train.mean(axis=0)
p_baseline = np.broadcast_to(prevalence, y_val.shape).copy()
record_validation('Cell prevalence', -1, p_baseline, 0, 0.0, 0.0, 0, 0)
print('Baseline validation scores:', metric_rows[-1])
Prepared local output — expand to compare
Baseline validation scores: {'model': 'Cell prevalence', 'seed': -1, 'split': 'validation', 'parameters': 0, 'fit_seconds': 0.0, 'predict_seconds': 0.0, 'epochs_run': 0, 'best_epoch': 0, 'brier': 0.045091246675882525, 'log_loss': 0.19124590620332385}

4. Separate space and time: CNN2D + LSTM

TimeDistributed applies the same CNN2D to each day. Flattening retains spatial positions in the daily vector. The LSTM reads 30 vectors and the dense head emits six probabilities.

A 3 x 3 kernel on this tiny grid is strongly affected by padding and boundaries: this illustrates the mechanism, rather than establishing an appropriate production resolution. The dense output head also learns location-specific outputs.

Check: Which axis does the convolution traverse, and which axis does the LSTM traverse?

Code block 9 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

def build_cnn2d_lstm():
    inputs = keras.Input(shape=X_grid.shape[1:], name='daily_maps')
    x = keras.layers.TimeDistributed(
        keras.layers.Conv2D(8, kernel_size=3, padding='same', activation='relu'),
        name='shared_daily_convolution',
    )(inputs)
    x = keras.layers.TimeDistributed(keras.layers.Flatten(), name='daily_vectors')(x)
    x = keras.layers.LSTM(16, name='temporal_memory')(x)
    x = keras.layers.Dense(N_NODES, activation='sigmoid', name='cell_probabilities')(x)
    outputs = keras.layers.Reshape((N_ROWS, N_COLS), name='probability_map')(x)
    model = keras.Model(inputs, outputs, name='cnn2d_lstm')
    model.compile(optimizer=keras.optimizers.Adam(learning_rate=1e-3),
                  loss=keras.losses.BinaryCrossentropy())
    return model

keras.utils.set_random_seed(SEEDS[0])
preview_model = build_cnn2d_lstm()
preview_model.summary()
assert preview_model(X_grid[train_mask][:2], training=False).shape == (2, N_ROWS, N_COLS)
Prepared local output — expand to compare
Model: "cnn2d_lstm"

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                    ┃ Output Shape           ┃       Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ daily_maps (InputLayer)         │ (None, 30, 3, 2, 3)    │             0 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ shared_daily_convolution        │ (None, 30, 3, 2, 8)    │           224 │
│ (TimeDistributed)               │                        │               │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ daily_vectors (TimeDistributed) │ (None, 30, 48)         │             0 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ temporal_memory (LSTM)          │ (None, 16)             │         4,160 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ cell_probabilities (Dense)      │ (None, 6)              │           102 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ probability_map (Reshape)       │ (None, 3, 2)           │             0 │
└─────────────────────────────────┴────────────────────────┴───────────────┘

 Total params: 4,486 (17.52 KB)

 Trainable params: 4,486 (17.52 KB)

 Non-trainable params: 0 (0.00 B)

5. Integrate both operations: ConvLSTM2D

ConvLSTM2D retains spatial structure inside the recurrent state and updates that state through convolutions. Its input remains (batch, time, rows, columns, channels). Flatten only the final spatial state, then predict the same six targets.

The Keras ConvLSTM2D API establishes the layer’s mechanics; it does not establish seismic forecasting skill. Both models use identical data, targets and training limits, but their parameter counts differ.

Code block 10 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

def build_convlstm():
    inputs = keras.Input(shape=X_grid.shape[1:], name='daily_maps')
    x = keras.layers.ConvLSTM2D(
        filters=4, kernel_size=3, padding='same', return_sequences=False,
        name='spatiotemporal_memory',
    )(inputs)
    x = keras.layers.Flatten(name='final_spatial_state')(x)
    x = keras.layers.Dense(N_NODES, activation='sigmoid', name='cell_probabilities')(x)
    outputs = keras.layers.Reshape((N_ROWS, N_COLS), name='probability_map')(x)
    model = keras.Model(inputs, outputs, name='convlstm')
    model.compile(optimizer=keras.optimizers.Adam(learning_rate=1e-3),
                  loss=keras.losses.BinaryCrossentropy())
    return model

keras.utils.set_random_seed(SEEDS[0])
preview_convlstm = build_convlstm()
preview_convlstm.summary()
assert preview_convlstm(X_grid[train_mask][:2], training=False).shape == (2, N_ROWS, N_COLS)
Prepared local output — expand to compare
Model: "convlstm"

┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━┓
┃ Layer (type)                    ┃ Output Shape           ┃       Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━┩
│ daily_maps (InputLayer)         │ (None, 30, 3, 2, 3)    │             0 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ spatiotemporal_memory           │ (None, 3, 2, 4)        │         1,024 │
│ (ConvLSTM2D)                    │                        │               │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ final_spatial_state (Flatten)   │ (None, 24)             │             0 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ cell_probabilities (Dense)      │ (None, 6)              │           150 │
├─────────────────────────────────┼────────────────────────┼───────────────┤
│ probability_map (Reshape)       │ (None, 3, 2)           │             0 │
└─────────────────────────────────┴────────────────────────┴───────────────┘

 Total params: 1,174 (4.59 KB)

 Trainable params: 1,174 (4.59 KB)

 Non-trainable params: 0 (0.00 B)

6. Train under one declared protocol

Run three seeds per architecture with identical maximum epochs, batch size and patience. Each fit receives a fresh optimizer and early-stopping callback. Chronological arrays are not shuffled. Validation also controls early stopping; the resulting scores are development diagnostics, not independent confirmation.

The original course test interval has already been inspected. This extension computes no test predictions. Seeds probe initialization sensitivity, not independent samples of seismicity. CPU runtime may be several minutes; devices can produce different timings and numerical results.

Code block 11 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

builders = {'CNN2D + LSTM': build_cnn2d_lstm, 'ConvLSTM2D': build_convlstm}
for model_name, builder in builders.items():
    for seed in SEEDS:
        keras.backend.clear_session()
        keras.utils.set_random_seed(seed)
        model = builder()
        callback = keras.callbacks.EarlyStopping(
            monitor='val_loss', patience=3, restore_best_weights=True,
        )
        print(f'\n{model_name}, seed={seed}, parameters={model.count_params()}')
        start = time.perf_counter()
        history = model.fit(
            X_grid[train_mask], y_grid[train_mask].astype('float32'),
            validation_data=(X_grid[val_mask], y_grid[val_mask].astype('float32')),
            epochs=EPOCHS, batch_size=BATCH_SIZE, shuffle=False,
            callbacks=[callback], verbose=2,
        )
        fit_seconds = time.perf_counter() - start
        start = time.perf_counter()
        probabilities = model.predict(X_grid[val_mask], batch_size=BATCH_SIZE, verbose=0)
        predict_seconds = time.perf_counter() - start
        run_name = model_name.lower().replace(' + ', '_').replace(' ', '_') + f'_seed{seed}'
        pd.DataFrame(history.history).to_csv(OUTPUT_DIR / f'{run_name}_history.csv', index=False)
        record_validation(
            model_name, seed, probabilities, model.count_params(), fit_seconds,
            predict_seconds, len(history.history['loss']),
            1 + int(np.argmin(history.history['val_loss'])),
        )
Prepared local output — expand to compare
WARNING:tensorflow:From C:\Users\Francisco Plaza\AppData\Local\Temp\statsei14-transformer-pilot-20261007\Lib\site-packages\keras\src\backend\common\global_state.py:82: The name tf.reset_default_graph is deprecated. Please use tf.compat.v1.reset_default_graph instead.


CNN2D + LSTM, seed=7, parameters=4486
Epoch 1/20

14/14 - 2s - 131ms/step - loss: 0.6805 - val_loss: 0.6249

Epoch 2/20

14/14 - 0s - 9ms/step - loss: 0.5713 - val_loss: 0.4917

Epoch 3/20

14/14 - 0s - 9ms/step - loss: 0.4266 - val_loss: 0.3472

Epoch 4/20

14/14 - 0s - 9ms/step - loss: 0.3064 - val_loss: 0.2661

Epoch 5/20

14/14 - 0s - 9ms/step - loss: 0.2478 - val_loss: 0.2298

Epoch 6/20

14/14 - 0s - 9ms/step - loss: 0.2196 - val_loss: 0.2113

Epoch 7/20

14/14 - 0s - 9ms/step - loss: 0.2048 - val_loss: 0.2016

Epoch 8/20

14/14 - 0s - 9ms/step - loss: 0.1969 - val_loss: 0.1966

Epoch 9/20

14/14 - 0s - 9ms/step - loss: 0.1925 - val_loss: 0.1940

Epoch 10/20

14/14 - 0s - 9ms/step - loss: 0.1897 - val_loss: 0.1926

Epoch 11/20

14/14 - 0s - 9ms/step - loss: 0.1878 - val_loss: 0.1917

Epoch 12/20

14/14 - 0s - 9ms/step - loss: 0.1865 - val_loss: 0.1911

Epoch 13/20

14/14 - 0s - 9ms/step - loss: 0.1854 - val_loss: 0.1908

Epoch 14/20

14/14 - 0s - 9ms/step - loss: 0.1845 - val_loss: 0.1906

Epoch 15/20

14/14 - 0s - 9ms/step - loss: 0.1837 - val_loss: 0.1905

Epoch 16/20

14/14 - 0s - 9ms/step - loss: 0.1831 - val_loss: 0.1905

Epoch 17/20

14/14 - 0s - 9ms/step - loss: 0.1825 - val_loss: 0.1906

Epoch 18/20

14/14 - 0s - 9ms/step - loss: 0.1820 - val_loss: 0.1907

CNN2D + LSTM, seed=17, parameters=4486
Epoch 1/20

14/14 - 2s - 129ms/step - loss: 0.6898 - val_loss: 0.6563

Epoch 2/20

14/14 - 0s - 9ms/step - loss: 0.6272 - val_loss: 0.5777

Epoch 3/20

14/14 - 0s - 9ms/step - loss: 0.5304 - val_loss: 0.4598

Epoch 4/20

14/14 - 0s - 9ms/step - loss: 0.4168 - val_loss: 0.3689

Epoch 5/20

14/14 - 0s - 9ms/step - loss: 0.3411 - val_loss: 0.3121

Epoch 6/20

14/14 - 0s - 9ms/step - loss: 0.2909 - val_loss: 0.2709

Epoch 7/20

14/14 - 0s - 9ms/step - loss: 0.2544 - val_loss: 0.2422

Epoch 8/20

14/14 - 0s - 9ms/step - loss: 0.2298 - val_loss: 0.2241

Epoch 9/20

14/14 - 0s - 9ms/step - loss: 0.2144 - val_loss: 0.2130

Epoch 10/20

14/14 - 0s - 9ms/step - loss: 0.2046 - val_loss: 0.2059

Epoch 11/20

14/14 - 0s - 9ms/step - loss: 0.1981 - val_loss: 0.2013

Epoch 12/20

14/14 - 0s - 9ms/step - loss: 0.1936 - val_loss: 0.1982

Epoch 13/20

14/14 - 0s - 9ms/step - loss: 0.1903 - val_loss: 0.1961

Epoch 14/20

14/14 - 0s - 9ms/step - loss: 0.1878 - val_loss: 0.1945

Epoch 15/20

14/14 - 0s - 8ms/step - loss: 0.1859 - val_loss: 0.1935

Epoch 16/20

14/14 - 0s - 9ms/step - loss: 0.1844 - val_loss: 0.1927

Epoch 17/20

14/14 - 0s - 9ms/step - loss: 0.1832 - val_loss: 0.1921

Epoch 18/20

14/14 - 0s - 9ms/step - loss: 0.1822 - val_loss: 0.1916

Epoch 19/20

14/14 - 0s - 9ms/step - loss: 0.1813 - val_loss: 0.1913

Epoch 20/20

14/14 - 0s - 9ms/step - loss: 0.1806 - val_loss: 0.1910

CNN2D + LSTM, seed=27, parameters=4486
Epoch 1/20

14/14 - 2s - 129ms/step - loss: 0.6826 - val_loss: 0.6511

Epoch 2/20

14/14 - 0s - 9ms/step - loss: 0.6207 - val_loss: 0.5729

Epoch 3/20

14/14 - 0s - 9ms/step - loss: 0.5284 - val_loss: 0.4681

Epoch 4/20

14/14 - 0s - 9ms/step - loss: 0.4233 - val_loss: 0.3731

Epoch 5/20

14/14 - 0s - 9ms/step - loss: 0.3349 - val_loss: 0.3031

Epoch 6/20

14/14 - 0s - 9ms/step - loss: 0.2770 - val_loss: 0.2626

Epoch 7/20

14/14 - 0s - 9ms/step - loss: 0.2431 - val_loss: 0.2380

Epoch 8/20

14/14 - 0s - 9ms/step - loss: 0.2224 - val_loss: 0.2230

Epoch 9/20

14/14 - 0s - 9ms/step - loss: 0.2095 - val_loss: 0.2135

Epoch 10/20

14/14 - 0s - 9ms/step - loss: 0.2012 - val_loss: 0.2072

Epoch 11/20

14/14 - 0s - 9ms/step - loss: 0.1956 - val_loss: 0.2030

Epoch 12/20

14/14 - 0s - 9ms/step - loss: 0.1916 - val_loss: 0.1999

Epoch 13/20

14/14 - 0s - 9ms/step - loss: 0.1887 - val_loss: 0.1977

Epoch 14/20

14/14 - 0s - 9ms/step - loss: 0.1866 - val_loss: 0.1960

Epoch 15/20

14/14 - 0s - 9ms/step - loss: 0.1849 - val_loss: 0.1948

Epoch 16/20

14/14 - 0s - 9ms/step - loss: 0.1835 - val_loss: 0.1939

Epoch 17/20

14/14 - 0s - 9ms/step - loss: 0.1824 - val_loss: 0.1934

Epoch 18/20

14/14 - 0s - 9ms/step - loss: 0.1815 - val_loss: 0.1930

Epoch 19/20

14/14 - 0s - 9ms/step - loss: 0.1808 - val_loss: 0.1928

Epoch 20/20

14/14 - 0s - 8ms/step - loss: 0.1802 - val_loss: 0.1926

WARNING:tensorflow:5 out of the last 9 calls to <function TensorFlowTrainer.make_predict_function.<locals>.one_step_on_data_distributed at 0x00000157703AA3E0> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has reduce_retracing=True option that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

WARNING:tensorflow:6 out of the last 12 calls to <function TensorFlowTrainer.make_predict_function.<locals>.one_step_on_data_distributed at 0x00000157703AA3E0> triggered tf.function retracing. Tracing is expensive and the excessive number of tracings could be due to (1) creating @tf.function repeatedly in a loop, (2) passing tensors with different shapes, (3) passing Python objects instead of tensors. For (1), please define your @tf.function outside of the loop. For (2), @tf.function has reduce_retracing=True option that can avoid unnecessary retracing. For (3), please refer to https://www.tensorflow.org/guide/function#controlling_retracing and https://www.tensorflow.org/api_docs/python/tf/function for  more details.

ConvLSTM2D, seed=7, parameters=1174
Epoch 1/20

14/14 - 1s - 78ms/step - loss: 0.6849 - val_loss: 0.6717

Epoch 2/20

14/14 - 0s - 20ms/step - loss: 0.6596 - val_loss: 0.6432

Epoch 3/20

14/14 - 0s - 20ms/step - loss: 0.6196 - val_loss: 0.5814

Epoch 4/20

14/14 - 0s - 20ms/step - loss: 0.5266 - val_loss: 0.4496

Epoch 5/20

14/14 - 0s - 20ms/step - loss: 0.3994 - val_loss: 0.3421

Epoch 6/20

14/14 - 0s - 21ms/step - loss: 0.3110 - val_loss: 0.2771

Epoch 7/20

14/14 - 0s - 20ms/step - loss: 0.2560 - val_loss: 0.2372

Epoch 8/20

14/14 - 0s - 20ms/step - loss: 0.2225 - val_loss: 0.2141

Epoch 9/20

14/14 - 0s - 20ms/step - loss: 0.2037 - val_loss: 0.2022

Epoch 10/20

14/14 - 0s - 20ms/step - loss: 0.1938 - val_loss: 0.1963

Epoch 11/20

14/14 - 0s - 20ms/step - loss: 0.1886 - val_loss: 0.1933

Epoch 12/20

14/14 - 0s - 21ms/step - loss: 0.1858 - val_loss: 0.1919

Epoch 13/20

14/14 - 0s - 20ms/step - loss: 0.1841 - val_loss: 0.1912

Epoch 14/20

14/14 - 0s - 20ms/step - loss: 0.1831 - val_loss: 0.1908

Epoch 15/20

14/14 - 0s - 20ms/step - loss: 0.1824 - val_loss: 0.1907

Epoch 16/20

14/14 - 0s - 20ms/step - loss: 0.1818 - val_loss: 0.1906

Epoch 17/20

14/14 - 0s - 20ms/step - loss: 0.1815 - val_loss: 0.1906

Epoch 18/20

14/14 - 0s - 19ms/step - loss: 0.1811 - val_loss: 0.1906

Epoch 19/20

14/14 - 0s - 20ms/step - loss: 0.1808 - val_loss: 0.1907

Epoch 20/20

14/14 - 0s - 20ms/step - loss: 0.1804 - val_loss: 0.1907

ConvLSTM2D, seed=17, parameters=1174
Epoch 1/20

14/14 - 1s - 78ms/step - loss: 0.6953 - val_loss: 0.6850

Epoch 2/20

14/14 - 0s - 20ms/step - loss: 0.6756 - val_loss: 0.6661

Epoch 3/20

14/14 - 0s - 20ms/step - loss: 0.6510 - val_loss: 0.6332

Epoch 4/20

14/14 - 0s - 20ms/step - loss: 0.5991 - val_loss: 0.5473

Epoch 5/20

14/14 - 0s - 20ms/step - loss: 0.4709 - val_loss: 0.3888

Epoch 6/20

14/14 - 0s - 20ms/step - loss: 0.3349 - val_loss: 0.2928

Epoch 7/20

14/14 - 0s - 20ms/step - loss: 0.2587 - val_loss: 0.2388

Epoch 8/20

14/14 - 0s - 20ms/step - loss: 0.2161 - val_loss: 0.2119

Epoch 9/20

14/14 - 0s - 20ms/step - loss: 0.1957 - val_loss: 0.2005

Epoch 10/20

14/14 - 0s - 20ms/step - loss: 0.1869 - val_loss: 0.1957

Epoch 11/20

14/14 - 0s - 20ms/step - loss: 0.1832 - val_loss: 0.1937

Epoch 12/20

14/14 - 0s - 19ms/step - loss: 0.1815 - val_loss: 0.1927

Epoch 13/20

14/14 - 0s - 20ms/step - loss: 0.1806 - val_loss: 0.1923

Epoch 14/20

14/14 - 0s - 20ms/step - loss: 0.1801 - val_loss: 0.1921

Epoch 15/20

14/14 - 0s - 20ms/step - loss: 0.1798 - val_loss: 0.1920

Epoch 16/20

14/14 - 0s - 20ms/step - loss: 0.1795 - val_loss: 0.1920

Epoch 17/20

14/14 - 0s - 21ms/step - loss: 0.1793 - val_loss: 0.1920

Epoch 18/20

14/14 - 0s - 20ms/step - loss: 0.1790 - val_loss: 0.1920

Epoch 19/20

14/14 - 0s - 20ms/step - loss: 0.1788 - val_loss: 0.1922

ConvLSTM2D, seed=27, parameters=1174
Epoch 1/20

14/14 - 1s - 78ms/step - loss: 0.6818 - val_loss: 0.6656

Epoch 2/20

14/14 - 0s - 20ms/step - loss: 0.6496 - val_loss: 0.6262

Epoch 3/20

14/14 - 0s - 20ms/step - loss: 0.5934 - val_loss: 0.5497

Epoch 4/20

14/14 - 0s - 21ms/step - loss: 0.5003 - val_loss: 0.4436

Epoch 5/20

14/14 - 0s - 20ms/step - loss: 0.3921 - val_loss: 0.3423

Epoch 6/20

14/14 - 0s - 20ms/step - loss: 0.3012 - val_loss: 0.2728

Epoch 7/20

14/14 - 0s - 20ms/step - loss: 0.2457 - val_loss: 0.2361

Epoch 8/20

14/14 - 0s - 20ms/step - loss: 0.2169 - val_loss: 0.2173

Epoch 9/20

14/14 - 0s - 21ms/step - loss: 0.2012 - val_loss: 0.2073

Epoch 10/20

14/14 - 0s - 20ms/step - loss: 0.1922 - val_loss: 0.2024

Epoch 11/20

14/14 - 0s - 20ms/step - loss: 0.1869 - val_loss: 0.1979

Epoch 12/20

14/14 - 0s - 20ms/step - loss: 0.1830 - val_loss: 0.1963

Epoch 13/20

14/14 - 0s - 20ms/step - loss: 0.1809 - val_loss: 0.1945

Epoch 14/20

14/14 - 0s - 20ms/step - loss: 0.1796 - val_loss: 0.1925

Epoch 15/20

14/14 - 0s - 20ms/step - loss: 0.1783 - val_loss: 0.1929

Epoch 16/20

14/14 - 0s - 20ms/step - loss: 0.1778 - val_loss: 0.1930

Epoch 17/20

14/14 - 0s - 20ms/step - loss: 0.1771 - val_loss: 0.1931

7. Compare score, capacity and runtime

Lower Brier score and log loss are better. Compare against cell prevalence before comparing architectures. Pooled scores can conceal weak performance in a sparse cell. Equal epoch limits do not equalize capacity or computation.

Check: How large are differences relative to initialization variability? Even a consistent difference across seeds needs new data for confirmation.

Code block 12 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

metrics = pd.DataFrame(metric_rows)
zone_metrics = pd.DataFrame(zone_metric_rows)
predictions = pd.concat(prediction_tables, ignore_index=True)
metrics.to_csv(OUTPUT_DIR / 'validation_metrics_by_seed.csv', index=False)
zone_metrics.to_csv(OUTPUT_DIR / 'validation_metrics_by_cell.csv', index=False)
predictions.to_csv(OUTPUT_DIR / 'validation_predictions.csv', index=False)
summary = metrics.groupby('model').agg(
    runs=('seed', 'size'), parameters=('parameters', 'first'),
    brier_mean=('brier', 'mean'), brier_seed_sd=('brier', 'std'),
    log_loss_mean=('log_loss', 'mean'), log_loss_seed_sd=('log_loss', 'std'),
    fit_seconds_mean=('fit_seconds', 'mean'),
    predict_seconds_mean=('predict_seconds', 'mean'), epochs_mean=('epochs_run', 'mean'),
).reset_index()
summary.to_csv(OUTPUT_DIR / 'validation_summary.csv', index=False)
display(summary)
display(zone_metrics.groupby(['model', 'node']).agg(
    positive_windows=('positives', 'first'), brier=('brier', 'mean'),
    log_loss=('log_loss', 'mean'),
).reset_index())
print('Seed SD describes initialization variability; it is not a confidence interval.')
Prepared local output — expand to compare
model runs parameters brier_mean brier_seed_sd log_loss_mean log_loss_seed_sd fit_seconds_mean predict_seconds_mean epochs_mean
0 CNN2D + LSTM 3 4486 0.045167 0.000124 0.191361 0.001104 4.088877 0.510509 19.333333
1 Cell prevalence 1 0 0.045091 NaN 0.191246 NaN 0.000000 0.000000 0.000000
2 ConvLSTM2D 3 1174 0.045182 0.000171 0.191705 0.000989 6.091698 0.192296 18.666667
model node positive_windows brier log_loss
0 CNN2D + LSTM 0 10 0.046056 0.195424
1 CNN2D + LSTM 1 6 0.028474 0.136058
2 CNN2D + LSTM 2 14 0.063435 0.250089
3 CNN2D + LSTM 3 13 0.058601 0.235284
4 CNN2D + LSTM 4 9 0.041509 0.179765
5 CNN2D + LSTM 5 7 0.032930 0.151545
6 Cell prevalence 0 10 0.046176 0.196389
7 Cell prevalence 1 6 0.028019 0.130800
8 Cell prevalence 2 14 0.062851 0.247252
9 Cell prevalence 3 13 0.058923 0.237250
10 Cell prevalence 4 9 0.041817 0.185683
11 Cell prevalence 5 7 0.032762 0.150101
12 ConvLSTM2D 0 10 0.045894 0.194557
13 ConvLSTM2D 1 6 0.028308 0.134006
14 ConvLSTM2D 2 14 0.063619 0.251443
15 ConvLSTM2D 3 13 0.058569 0.237154
16 ConvLSTM2D 4 9 0.041524 0.180390
17 ConvLSTM2D 5 7 0.033177 0.152680
Seed SD describes initialization variability; it is not a confidence interval.

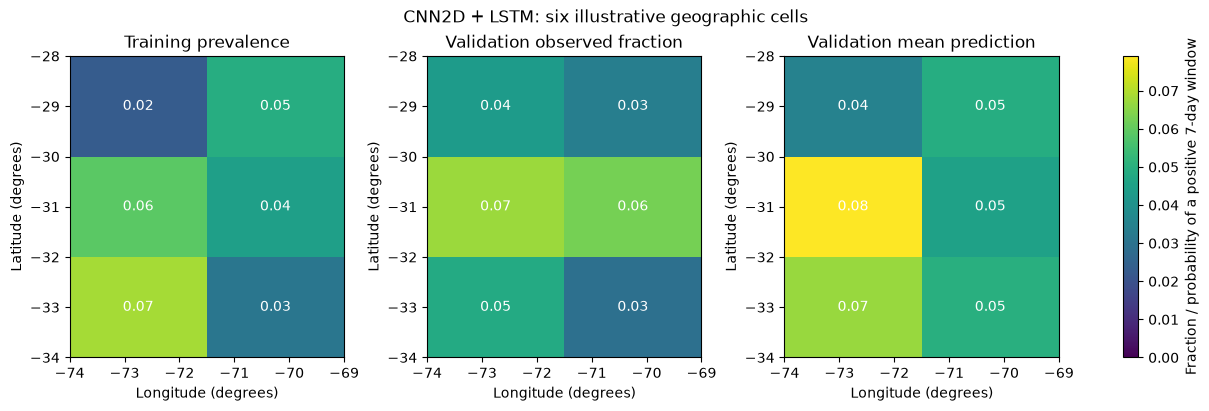

8. Interpret the spatial output correctly

These maps show positive-window fractions and catalogue-event probabilities on a shared colour scale. They are not maps of shaking, exposure, damage or seismic risk. Means over time hide changes between origins; averaging seeds produces an ensemble diagnostic, whose score differs from the mean individual-seed scores above.

CNN2D + LSTM is selected for this display in advance, not because its validation result is best. Spatial means alone do not establish calibration.

Code block 13 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

MAP_MODEL = 'CNN2D + LSTM'
mean_seed_prediction = np.mean([
    validation_predictions[(MAP_MODEL, seed)] for seed in SEEDS
], axis=0)
map_fields = [
    ('Training prevalence', prevalence.reshape(N_ROWS, N_COLS)),
    ('Validation observed fraction', y_val.mean(axis=0).reshape(N_ROWS, N_COLS)),
    ('Validation mean prediction', mean_seed_prediction.mean(axis=0).reshape(N_ROWS, N_COLS)),
]
vmax = max(float(field.max()) for _, field in map_fields)
fig, axes = plt.subplots(1, 3, figsize=(12, 4), constrained_layout=True)
for ax, (title, field) in zip(axes, map_fields):
    mesh = ax.pcolormesh(LON_EDGES, LAT_EDGES, field, vmin=0, vmax=max(vmax, 0.01),
                         cmap='viridis', shading='flat')
    for node in range(N_NODES):
        r, c = divmod(node, N_COLS)
        ax.text(lon_centres[c], lat_centres[r], f'{field[r,c]:.2f}',
                ha='center', va='center', color='white')
    ax.set(title=title, xlabel='Longitude (degrees)', ylabel='Latitude (degrees)')
fig.colorbar(mesh, ax=axes, label='Fraction / probability of a positive 7-day window')
fig.suptitle(f'{MAP_MODEL}: six illustrative geographic cells')
fig.savefig(OUTPUT_DIR / 'validation_mean_maps.png', dpi=160)
plt.show()
Prepared local output — expand to compare Prepared local figure from code block 13

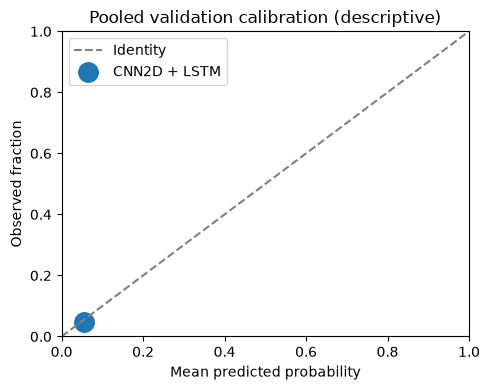

9. Check calibration without overclaiming

A forecast probability near 0.2 should correspond to about 20% positives over suitable repeated forecasts. Sparse bins make this check unstable. The flags below are descriptive warnings, not acceptance tests. Cells and forecast origins can be dependent; origin-cell pairs are not independent replicates. No binomial confidence intervals are drawn.

A pooled curve can conceal cell-specific bias. Inspect the positive counts and cell table as well. Do not recalibrate using these labels and then claim independent validation on the same outcomes.

The calibration figure, pooled calibration table and cell-bias table below use the mean prediction across the three predeclared seeds. They describe that ensemble, whereas the preceding score summary averages separately scored runs.

Code block 14 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

bin_edges = np.linspace(0, 1, 6)
p_flat, y_flat = mean_seed_prediction.ravel(), y_val.ravel()
bin_index = np.minimum(np.searchsorted(bin_edges, p_flat, side='right') - 1, 4)
calibration_rows = []
for b in range(5):
    selected = bin_index == b
    if not selected.any():
        continue
    positives, n = int(y_flat[selected].sum()), int(selected.sum())
    calibration_rows.append({
        'bin': b, 'n_origin_cell_pairs': n, 'positives': positives,
        'mean_probability': float(p_flat[selected].mean()),
        'observed_fraction': float(y_flat[selected].mean()),
        'sparse_warning': n < 20 or positives < 5 or n - positives < 5,
    })
calibration = pd.DataFrame(calibration_rows)
calibration.to_csv(OUTPUT_DIR / 'validation_pooled_calibration.csv', index=False)
display(calibration)
fig, ax = plt.subplots(figsize=(5, 4))
ax.plot([0, 1], [0, 1], '--', color='grey', label='Identity')
ax.scatter(calibration.mean_probability, calibration.observed_fraction,
           s=20 + 5 * np.sqrt(calibration.n_origin_cell_pairs), label=MAP_MODEL)
ax.set(xlim=(0, 1), ylim=(0, 1), xlabel='Mean predicted probability',
       ylabel='Observed fraction', title='Pooled validation calibration (descriptive)')
ax.legend(); fig.tight_layout()
fig.savefig(OUTPUT_DIR / 'validation_calibration.png', dpi=160)
plt.show()
cell_bias = node_table[['node', 'latitude', 'longitude']].copy()
cell_bias['validation_positive_windows'] = y_val.sum(axis=0).astype(int)
cell_bias['observed_fraction'] = y_val.mean(axis=0)
cell_bias['mean_probability'] = mean_seed_prediction.mean(axis=0)
cell_bias.to_csv(OUTPUT_DIR / 'validation_cell_bias.csv', index=False)
display(cell_bias)
Prepared local output — expand to compare
bin n_origin_cell_pairs positives mean_probability observed_fraction sparse_warning
0 0 1248 59 0.054225 0.047276 False
Prepared local figure from code block 14
node latitude longitude validation_positive_windows observed_fraction mean_probability
0 0 -33.0 -72.75 10 0.048077 0.066981
1 1 -33.0 -70.25 6 0.028846 0.049810
2 2 -31.0 -72.75 14 0.067308 0.079128
3 3 -31.0 -70.25 13 0.062500 0.045362
4 4 -29.0 -72.75 9 0.043269 0.035114
5 5 -29.0 -70.25 7 0.033654 0.048956

10. Save the experiment and state the next question

Retain the output directory with the common data manifest. A local run does not establish fresh-Colab execution or that today’s catalogue was available unchanged at historical forecast dates.

Exercises

  1. Explain why regional and cell-level Brier scores answer different questions and cannot be ranked directly.
  2. Inspect one validation origin instead of the time average. Report all six probabilities without forcing their sum to one.
  3. Predeclare an additional spatial baseline for future work. A per-cell logistic model cannot fit when a training cell has only one class; do not silently remove the cell.
  4. Compare with the graph tutorial on exactly these cells. Final confirmation requires a genuinely untouched interval and a frozen protocol.

The final cell also copies the common data protocol and chronological window manifest, then downloads a ZIP containing this experiment.

Code block 15 · Run the matching prepared-notebook cell in order. For self-study, copy into a new Colab code cell.

protocol = {
    'tutorial': 'maps', 'purpose': 'exploratory teaching extension',
    'evaluation_split': 'validation', 'test_evaluated_in_this_tutorial': False,
    'target': 'at least one catalogue M >= 5 event in next 7 days, per cell',
    'node_order': 'row-major: latitude_row * N_COLS + longitude_column',
    'latitude_edges': np.asarray(LAT_EDGES).tolist(),
    'longitude_edges': np.asarray(LON_EDGES).tolist(),
    'features': list(FEATURES), 'seeds': list(SEEDS),
    'max_epochs': EPOCHS, 'batch_size': BATCH_SIZE,
    'early_stopping': {'monitor': 'val_loss', 'patience': 3, 'restore_best_weights': True},
    'normalization': 'shared per feature across cells, fitted on training only',
    'keras_version': keras.__version__, 'tensorflow_version': tf.__version__,
    'historical_as_of_verified': False, 'colab_clean_execution_verified': False,
    'caveats': ['validation also controls early stopping',
                'seeds are not independent data replications',
                'geographic cells have unequal areas and truncated boundaries',
                'catalogue events are not ground-motion or damage observations',
                'original test period was previously inspected'],
}
(OUTPUT_DIR / 'protocol.json').write_text(json.dumps(protocol, indent=2), encoding='utf-8')
print('Saved validation outputs to:', OUTPUT_DIR)

# Bundle both source-data provenance and tutorial-specific experiment outputs.
import shutil
shutil.copy2(RUN_DIR / 'protocol.json', OUTPUT_DIR / 'data_protocol.json')
shutil.copy2(RUN_DIR / 'windows.csv', OUTPUT_DIR / 'windows.csv')
archive_path = shutil.make_archive(str(OUTPUT_DIR) + '_outputs', 'zip', root_dir=OUTPUT_DIR)
print('Downloadable experiment archive:', archive_path)
try:
    from google.colab import files
    files.download(archive_path)
except ImportError:
    print('Outside Colab: copy the archive from the displayed local path.')
Prepared local output — expand to compare
Saved validation outputs to: tutorial-runs\maps-445f3b58f5db\maps
Downloadable experiment archive: H:\Otros ordenadores\Mi PC\1_Proyectos\2026 - Statsei 14 -\statsei14-deep-learning\qa\tutorials-2026-10-07\executions\maps-c332efd9\tutorial-runs\maps-445f3b58f5db\maps_outputs.zip
Outside Colab: copy the archive from the displayed local path.

References and next steps

Return to the practical guide. These implementations adapt general Keras mechanisms to an exploratory teaching task; their documentation does not validate earthquake forecasting skill.
